Ball valve / Product 2512

Two-piece floating ball valve Class 600/900

Name: Two-piece floating ball valve Class 600/900
Brand: ZGV
SKU: 2512

FamilyBall valve

Product ID2512

Sales supportSubmit RFQ

Back to Ball Valves ↗

Read the floating vs trunnion ball valve design guide →

Catalogue configuration

Selection and installation

Two-piece floating ball valve Class 600/900. Catalogue A105 body and R-PTFE seat. Compare the separate Class 600/900 full- and reduced-bore tables for your ZGV RFQ.

What distinguishes this product?

Two-piece floating ball valve Class 600/900. This forged floating design has separate Class 600 and Class 900 dimension tables for full and reduced bore. The material example uses an A105 body and R-PTFE seat. Specify the class, NPS and bore option with the medium, temperature and quantity.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Ball valve manufacturer →

ZGV / PRODUCT 2512

Which full-bore sizes are tabulated for this ball valve?

Class 600 full-bore tabulated NPS (in): 1/2, 3/4, 1, 1-1/2, 2, 3
Class 900 full-bore tabulated NPS (in): 1/2, 3/4, 1, 1-1/2, 2, 3

Source: ZGV API Valve Series Products Selection Catalogue, original PDF page 6. Check the complete dimensions and material tables below.

Use these tabulated sizes to shortlist configurations and prepare your enquiry. ZGV can review bore, materials, dimensions, pressure–temperature conditions, actuation and inspection requirements with your quotation. The final offered configuration is confirmed during quotation; pressure classes are designations rather than pressures in psi.

Manufacturer credentials for your ball valve RFQ

Zhejiang Zhonggong Valve Group Co., Ltd. (ZGV) brings documented manufacturing and quality-management credentials to industrial valve procurement. Explore the relevant records alongside the model drawings, material tables and project specification.

ISO 9001 Quality Management System Certification · 17325Q20963R0S
Manufacture and sales of pressure piping valves (metal valves) (A1 and B) within the qualification scope.
API 6D Monogram License · 6D-2219
Ball Valves, Check Valves, Gate Valves and Plug Valves.

Verify ZGV in the official API Composite List: licence 6D-2219 was listed as Active when checked on 16 October 2026.

Include your size, pressure class, service conditions, materials and required API Monogram or inspection documents in the RFQ. ZGV can review these requirements with the selected configuration and quotation.

Discuss your valve specification with ZGV · Explore the quality and compliance library

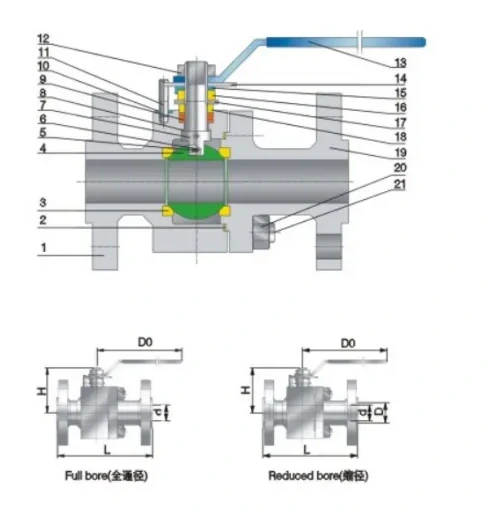

Structure and product views for Two piece floating ball valve Class600/900

Part materials

Class 600/900 part materials

No.	Part	Material
1	Body	ASTM A105
2	Gasket	PTFE
3	Seat	R-PTFE
4	Ball	304 S.S.
5	Steel Ball	304 S.S.
6	Anti-static Spring	304 S.S.
7	Stem	ASTM A182 F6a
8	Gasket	PTFE
9	Packing	PTFE
10	Gland Plate	AISI 1045
11	Nut	ASTM A193 Gr.B7
12	Nut	ASTM A194 Gr.2H
13	Lever	ASTM A216 Gr.WCB
14	Gauge Block	AISI 1010 Zinc-coated
15	Bushing Gasket	AISI 1045
16	Nut	ASTM A194 Gr.2H
17	Gland	304 S.S.
18	Gland Bushing	ASTM A276 410
19	Bonnet	ASTM A105
20	Nut	ASTM A194 Gr.2H
21	Stud	ASTM A193 Gr.B7

Dimensions & weights

Class 600 · Full bore

NPS (in)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
1/2	13	165	98	140	3.0
3/4	19	190	103	140	4.8
1	25	216	122	170	6.5
1-1/2	38	241	135	260	12.0
2	51	292	151	300	15.0
3	76	356	177	450	28.0

Dimensions & weights

Class 600 · Reduced bore

NPS (in)	d (mm)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
3/4×1/2	13	19	190	98	140	2.8
1×3/4	19	25	216	103	140	3.2
1-1/2×1	25	38	241	122	170	5.5
2×1-1/2	38	51	292	135	260	7.1
3×2	51	76	356	151	300	12.8
--	--	--	--	--	--	--

Dimensions & weights

Class 900 · Full bore

NPS (in)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
1/2	13	216	115	160	4.2
3/4	19	229	122	230	9.6
1	25	254	125	230	13.8
1-1/2	38	305	157	400	21.8
2	51	368	178	400	39.0
3	76	381	208	500	58.0

Dimensions & weights

Class 900 · Reduced bore

NPS (in)	d (mm)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
3/4×1/2	13	19	229	115	160	5.6
1×3/4	19	25	254	122	230	6.8
1-1/2×1	25	38	305	125	230	12.0
2×1-1/2	38	51	368	157	400	16.5
3×2	51	76	381	178	400	24.0
--	--	--	--	--	--	--
