Ball valve / Product 2520

Full-weld split-body ball valve · Class 300

Name: Full-weld split-body ball valve · Class 300
Brand: ZGV
SKU: 2520

FamilyBall valve

Product ID2520

Sales supportSubmit RFQ

Back to Ball Valves ↗

Catalogue configuration

Selection and installation

Full-weld split-body ball valve · Class 300. Fully welded ball valve with WE, RF and RTJ connection references and catalogue A105, LF2 and F316 body options. Request a ZGV quotation.

What distinguishes this product?

Full-weld split-body ball valve · Class 300. Read the WE, RF and RTJ connection-length columns separately for this Class 300 fully welded ball valve. The parts table lists A105, LF2 and F316 material configurations in separate columns. State the required connection and material configuration with NPS, quantity and operating conditions; blank catalogue cells need confirmation.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Ball valve manufacturer →

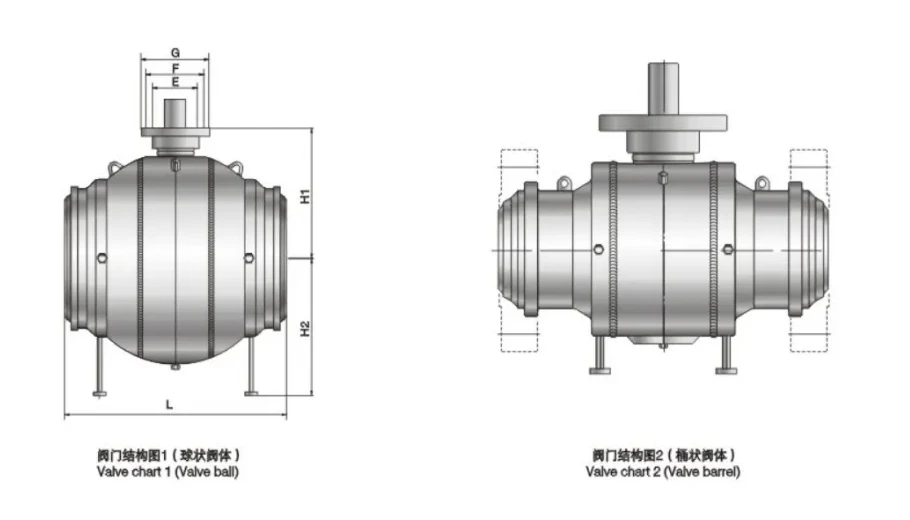

Structure and product views for Full welded ball valve Class300

Dimensions & weights

Class 300 · Connection and outline dimensions

Size (in)	DN	L (WE) (mm)	L (RF) (mm)	L (RTJ) (mm)	E (mm)	F (mm)	G (mm)	n-d1	H1 (mm)	H2 (mm)	Weight (kg)
6	150	403	403	419	100	140	175	4-M16	235	200	200
8	200	521	502	518	130	165	210	4-M20	291	280	280
10	250	559	568	584	130	165	210	4-M20	328	320	410
12	300	635	648	664	200	254	300	8-M16	368	355	630
14	350	762	762	778	200	254	300	8-M16	410	400	900
16	400	838	838	854	200	254	300	8-M16	446	470	1155
18	450	914	914	930	230	298	350	8-M20	493	510	1580
20	500	991	991	1010	230	298	350	8-M20	542	555	1950
22	550	1092	1092	1114	230	298	350	8-M20	590	600	2530
24	600	1143	1143	1165	230	298	350	8-M20	641	660	2850
26	650	1245	1245	1270	260	356	415	8-M30	678	700	3360
28	700	1346	1346	1372	260	356	415	8-M30	720	760	3750
30	750	1397	1397	1422	260	356	415	8-M30	775	800	5500
32	800	1524	1524	1552	300	406	475	8-M36	815	850	5900
34	850	1626	1626	1654	--	--	--	--	--	--	--
36	900	1727	1727	1755	300	406	475	8-M36	895	1000	9000
38	950	--	--	--	--	--	--	--	--	--	--
40	1000	1956	1956	--	300	406	475	8-M36	970	1200	12000
42	1050	2083	2083	--	300	406	475	8-M36	1050	1300	--
48	1200	2170	2170	--	370	483	560	12-M36	1200	1450	--
56	1400	2743	2743	--	470	603	686	20-M36	1330	1600	--
60	1500	2820	2820	--	470	603	686	20-M36	1480	1700	--

Part materials

Major part materials

No.	Part	Material 1	Material 2	Material 3
1	Body	ASTM A105	ASTM A350 LF2	ASTM A182 F316
2	Bonnet	ASTM A105	ASTM A350 LF2	ASTM A182 F316
3	Ball	ASTM A105+ENP	ASTM A350 LF2+ENP	ASTM A182 F316
4	Seat	ASTM A105+ENP	ASTM A350 LF2+ENP	ASTM A182 F316
5	Seal ring	PTFE/MOLON/PEEK	PTFE/MOLON/PEEK	PTFE/MOLON/PEEK
6	Stem	ASTM A182 F6a	ASTM A350 LF2	ASTM A182 F316
7	Stuffing box	ASTM A182 F6a	ASTM A276 410	ASTM A182 F316
8	Packing gland	ASTM A105	ASTM A350 LF2	ASTM A182 F316
9	Up bracing plate	ASTM A105	ASTM A350 LF2	ASTM A182 F316
10	Down bracing plate	ASTM A105	ASTM A350 LF2	ASTM A182 F316
11	Adapter	ASTM A105	ASTM A350 LF2	ASTM A182 F316
12	Spring	Inconel X-750	Inconel X-750	Inconel X-750
13	Key	45	45	45
14	Gasket	Stainless steel + PTFE	Stainless steel + PTFE	Stainless steel + PTFE
15	Bushing	Carbon steel + PTFE	Carbon steel + PTFE	Carbon steel + PTFE
16	O-ring	Fluorine rubber	Fluorine rubber	Fluorine rubber
17	Pin	35	ASTM A276 410	ASTM A182 F316
18	Nut	ASTM A193 B7M	ASTM A320 L7M	ASTM A193 B8
19	Relief valve	Carbon steel (assembly components)	Stainless steel (assembly components)	Stainless steel (assembly components)
20	Drain valve	Carbon steel (assembly components)	Stainless steel (assembly components)	Stainless steel (assembly components)
21	Fitting injection valve	Carbon steel (assembly components)	Stainless steel (assembly components)	Stainless steel (assembly components)
