Gate valve / Product 2530
Catalogue configuration
Forged steel threaded or welded gate valve Class 800. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2530.
Forged steel threaded or welded gate valve Class 800. Specify threaded or welded ends and check the matching Class 800 connection dimensions. Confirm thread form or weld preparation in the enquiry.
ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.
Confirm pressure-temperature limits and the final configuration with ZGV.

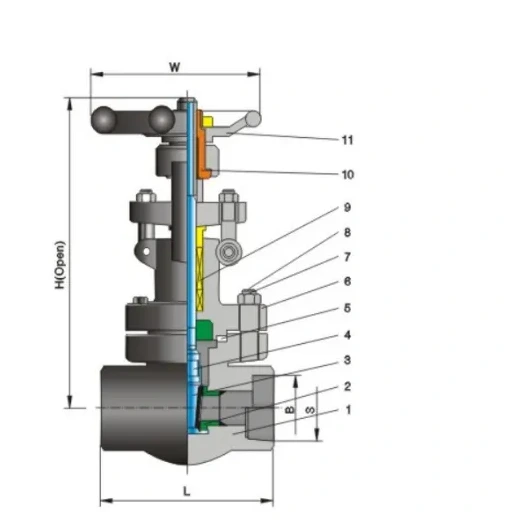

Structure & product views
Product parameters
Dimensions & weights
| Size (in) | DN (mm) | L (mm) | B ANSI (mm) | B JIS (mm) | S thread size | H open (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 92 | 21.8 | 22.2 | 1/2 | 169 | 100 | 2.2 |
| 3/4 | 20 | 111 | 27.1 | 27.7 | 3/4 | 193 | 125 | 4.3 |
| 1 | 25 | 120 | 33.8 | 34.5 | 1 | 230 | 160 | 5.9 |
| 1-1/4 | 32 | 120 | 42.6 | 43.2 | 1-1/4 | 246 | 160 | 6.9 |
| 1-1/2 | 40 | 140 | 48.7 | 49.1 | 1-1/2 | 283 | 180 | 11.1 |
| 2 | 50 | 178 | 61.1 | 61.1 | 2 | 330 | 200 | 15.2 |
Part materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | A105 |
| 2 | Seat | 13Cr |
| 3 | Wedge | 13Cr |
| 4 | Stem | A182-F6a |
| 5 | Gasket | Stainless steel+flexible graphite |
| 6 | Bonnet | A105 |
| 7 | Nut | A194-2H |
| 8 | Bolt | A193-B7 |
| 9 | Packing | Flexible graphite |
| 10 | Stem nut | 13Cr |
| 11 | Handwheel | Malleable iron |
