Gate valve / Product 2533
Catalogue configuration
Bellows-sealed gate valve Class 800. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2533.
Bellows-sealed gate valve Class 800. Compare the gate construction, stem arrangement, end connection and the catalogue designation. Send the operating conditions and required materials before confirming a gate-valve configuration.
ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.
Confirm pressure-temperature limits and the final configuration with ZGV.

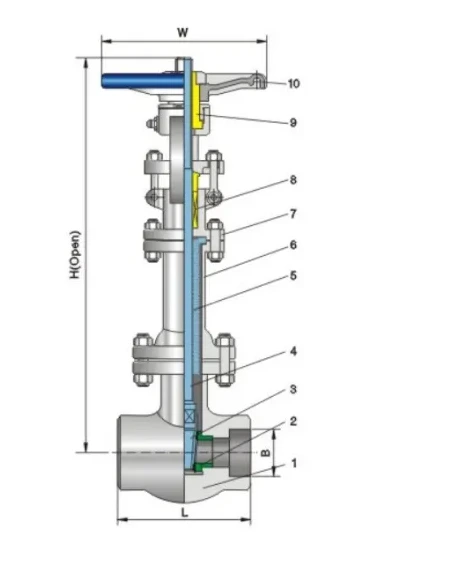

Structure & product views
Product parameters
Part materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | A105 |
| 2 | Seat | 13Cr+STL |
| 3 | Wedge | 13Cr+STL |
| 4 | Stem | A182-F6a |
| 5 | Bellow | 304L |
| 6 | Bonnet | A105 |
| 7 | Yoke | A105 |
| 8 | Packing | Flexible graphite |
| 9 | Stem nut | Copper alloy |
| 10 | Handwheel | Malleable cast iron |
Dimensions & weights
| Size (in) | DN (mm) | L (mm) | B (mm) | H open (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2 | 15 | 92 | 21.8 | 253 | 100 | 15 |
| 3/4 | 20 | 111 | 27.1 | 292 | 125 | 19 |
| 1 | 25 | 120 | 33.8 | 335 | 160 | 23 |
| 1-1/2 | 40 | 140 | 48.7 | 442 | 180 | 35 |
| 2 | 50 | 178 | 61.1 | 536 | 200 | 38 |
