Flat-plate gate valve Class 600

Name: Flat-plate gate valve Class 600
Brand: ZGV
SKU: 2537

FamilyGate valve

Product ID2537

Sales supportSubmit RFQ

Back to Gate Valves ↗

Catalogue configuration

Selection and installation

Flat-plate gate valve Class 600. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2537.

What distinguishes this product?

Flat-plate gate valve Class 600. Compare the gate construction, stem arrangement, end connection and the catalogue designation. Send the operating conditions and required materials before confirming a gate-valve configuration.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Gate valve manufacturer →

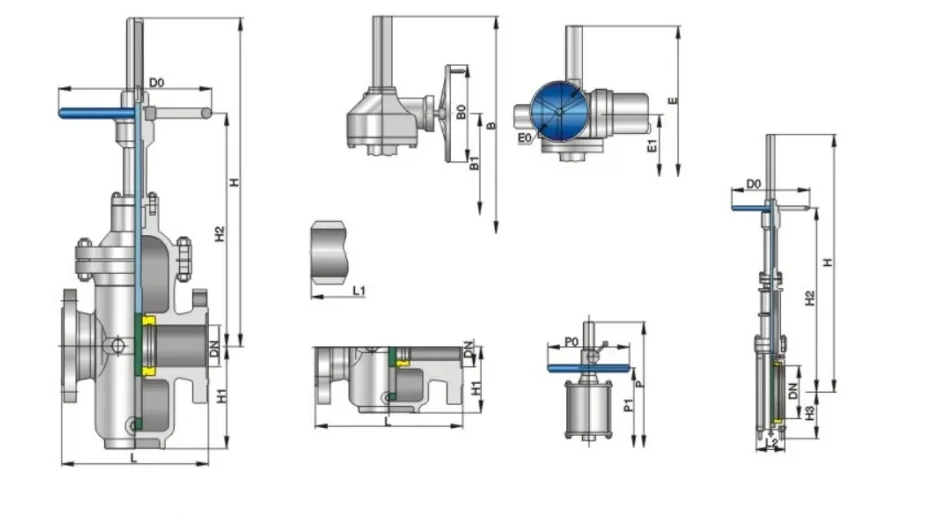

Structure and product views for Electric/gear driven flat gate valve Class600

Dimensions & weights

Product performance specification

Pressure class (lb)	Shell test (MPa)	High-pressure seal test (MPa)	Low-pressure seal test (MPa)	Applicable temperature (°C)	Ordinary medium	Antisulphur medium
150	3.0	2.2	0.6	−29~121°C; or per customer requirement	Petroleum; natural gas; water	Natural gas and petroleum with H₂S and CO₂
300	7.5	5.5	0.6	−29~121°C; or per customer requirement	Petroleum; natural gas; water	Natural gas and petroleum with H₂S and CO₂
400	10.2	7.48	0.6	−29~121°C; or per customer requirement	Petroleum; natural gas; water	Natural gas and petroleum with H₂S and CO₂
600	15.0	11.0	0.6	−29~121°C; or per customer requirement	Petroleum; natural gas; water	Natural gas and petroleum with H₂S and CO₂
900	22.5	17.5	0.6	−29~121°C; or per customer requirement	Petroleum; natural gas; water	Natural gas and petroleum with H₂S and CO₂

Dimensions & weights

Technical specification

Item	Variant	Standard or requirement
Design reference	—	API 6D
Design standard	—	API 6D; ASME B16.34
Structural length	Flanged	API 6D; ASME B16.10
Structural length	Welded connection	API 6D; ASME B16.10
Flanged ends	—	ASME B16.5; MSS SP44
Butt-welding ends	—	ASME B16.25
Test & inspection	—	API 6D; API 598

Part materials

Major parts material form

No.	Part	Ordinary · GB	Ordinary · ASTM	Antisulphur · GB	Antisulphur · ASTM
1	Body	WCB	A216-WCB	WCB	A216-WCB
2	Gate disc	16Mn+ENP	A105+ENP	1Cr18Ni9	A276-304
3	Seat	16Mn+PTFE	A105+PTFE	1Cr18Ni9+PTFE	A276-304+PTFE
4	O-Ring	NBR	NBR	FPM	FPM
5	Stem	2Cr13	A276-420	1Cr18Ni9	A276-304
6	Packing seat	2Cr13	A276-420	2Cr13	A276-420
7	Y ring	NBR	NBR	FPM	FPM
8	Sealing shroud	2Cr13	A276-420	2Cr13	A276-420
9	Indicating window	Film	Film	Film	Film
10	Blowdown stops	25+Zn	A105+Zn	1Cr18Ni9	A276-304
11	Grease injection joint	25+Zn	A105+Zn	25+Zn	A105+Zn
12	Stud	35CrMoA	A193-B7	35CrMoA	A193-B7
13	Nut	45	A194-2H	45	A194-2H
14	Gasket	Flexible graphite+1Cr18Ni9	Graphite+304	Flexible graphite+1Cr18Ni9	Graphite+304
15	Bonnet	WCB	A216-WCB	WCB	A216-WCB
16	Yoke	WCB	A216-WCB	WCB	A216-WCB
17	Stem nut	ZQA19-4	C95500	ZQA19-4	C95500
18	Gland	25	A105	25	A105
19	Hand wheel	25	A536-60-40-18	25	A536-60-40-18
20	Indicating cover	25	A105	25	A105

Dimensions & weights

Class 600 · Main connection dimensions

NPS	DN (mm)	Flange L (mm)	Butt-weld L₁ (mm)	Light-duty L₂ (mm)	Hand H (mm)	Hand H₂ (mm)	Hand H₀ (mm)	Geared B (mm)	Geared B₁ (mm)	Geared B₀ (mm)	Geared device	Air P (mm)	Air P₁ (mm)	Air P₀ (mm)	Electric E (mm)	Electric E₁ (mm)	Electric E₀ (mm)	Electric device	Non-diversion hole H₃ (mm)	Diversion hole H₁ (mm)
2	50	292	--	--	468	335	300	505	430	310	BA-0	543	445	200	647	560	200	SMC-04	108	158
2 1/2	65	330	--	--	565	430	300	560	470	310	BA-0	663	570	200	702	610	200	SMC-04	125	190
3	80	356	--	--	625	440	350	610	510	310	BA-0	745	640	250	752	650	500	SMC-03	145	225
4	100	432	--	--	720	510	350	770	650	310	BA-0	870	740	250	950	820	500	SMC-03	165	255
6	150	559	--	--	910	630	400	965	800	310	BA-0	1135	930	350	1138	950	305	SMC-0	220	330
8	200	660	--	--	1145	800	500	1200	960	460	BA-1	1445	1170	350	1403	1130	305	SMC-0	280	410
10	250	787	--	--	1411	1060	500	1370	1090	460	BA-1	1786	1460	400	1575	1280	305	SMC-0	330	490
12	300	838	--	--	1590	1160	600	1560	1200	460	BA-1	2040	1630	450	1750	1410	305	SMC-1	380	570
14	350	889	--	--	--	--	--	1740	1350	460	BA-2	--	--	--	1930	1570	305	SMC-1	430	650
16	400	991	--	--	--	--	--	1970	1540	400	BA-2	--	--	--	2210	1700	305	SMC-1	480	735
18	450	1092	--	--	--	--	--	2260	1700	460	BA-2	--	--	--	2500	1940	458	SMC-2	530	810
20	500	1194	--	--	--	--	--	2420	1850	460	BA-2	--	--	--	2630	2020	458	SMC-2	580	905
22	550	1295	--	--	--	--	--	2685	2010	600	BA-3	--	--	--	2840	2240	610	SMC-3	640	1075
24	600	1397	--	--	--	--	--	2985	2190	600	BA-3	--	--	--	3100	2450	610	SMC-3	700	1160
26	650	1448	--	--	--	--	--	3160	2390	600	BA-3	--	--	--	3310	2610	610	SMC-3	760	1220
28	700	1549	--	--	--	--	--	3350	2550	600	BA-3	--	--	--	3500	2740	610	SMC-3	830	1330
30	750	1651	--	--	--	--	--	3470	2680	600	BAA-3	--	--	--	3690	2890	610	SMC-3	900	1415
32	800	1778	--	--	--	--	--	3880	2910	600	BAA-3	--	--	--	3900	3050	610	SMC-3	--	1540
36	900	2083	--	--	--	--	--	4250	3115	620	BAA-4	--	--	--	4330	3380	610	SMC-4	--	1650
40	1000	2150	--	--	--	--	--	4580	3395	620	BAA-4	--	--	--	4760	3710	610	SMC-4	--	1760
42	1050	2300	--	--	--	--	--	4885	3655	620	BAA-4	--	--	--	4970	3860	760	SMC-5	--	1840
