Butterfly valve / Product 2564
Concentric rubber seated wafer butterfly valve Class 150
FamilyButterfly valve
Product ID2564
Sales supportSubmit RFQ
Catalogue configuration
Selection and installation
Concentric rubber seated wafer butterfly valve Class 150. Catalogue WCB body and NBR seat. Review Class 150 wafer butterfly valve dimensions and request a ZGV quotation.
What distinguishes this product?
Concentric rubber seated wafer butterfly valve Class 150. This concentric wafer butterfly valve uses a WCB body and NBR seat in the catalogue example. Compare it with the flanged, PTFE-seated and metal-seated models before specifying the connection and seal. Include NPS, medium, operating conditions and actuation requirements; actuator sizing needs confirmation.
What information is needed for a quotation?
ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.
Confirm pressure-temperature limits and the final configuration with ZGV.
Product parameters
Design, materials and dimensions.
ClassClass 150
DesignConcentric
SeatRubber seat · NBR
ConnectionWafer type
Dimensions & weights
Dimensions & weights
Units and blank cells are shown with the table.
| Size (in) | L (mm) | H1 (mm) | H (mm) | D0 (mm) | L0 (mm) | Weight (Kg) · Wafer | Weight (Kg) · Lug |
|---|---|---|---|---|---|---|---|
| 2 | 43 | 74 | 180 | 160 | 200 | 10 | 11 |
| 2-1/2 | 46 | 79 | 196 | 160 | 200 | 10 | 12 |
| 3 | 46 | 85 | 205 | 160 | 200 | 11 | 13 |
| 4 | 52 | 101 | 215 | 160 | 200 | 12 | 15 |
| 5 | 56 | 112 | 230 | 160 | 240 | 14 | 18 |
| 6 | 56 | 125 | 245 | 240 | 240 | 16 | 19 |
| 8 | 60 | 160 | 280 | 240 | 240 | 20 | 24 |
| 10 | 68 | 192 | 315 | 240 | 280 | 28 | 34 |
| 12 | 78 | 242 | 355 | 310 | 280 | 39 | 46 |
| 14 | 78 | 277 | 410 | 310 | -- | 67 | 77 |
| 16 | 102 | 302 | 425 | 310 | -- | 89 | 108 |
| 18 | 114 | 341 | 462 | 310 | -- | 109 | 125 |
| 20 | 127 | 366 | 495 | 310 | -- | 128 | 168 |
| 24 | 154 | 424 | 586 | 310 | -- | 230 | 280 |
| 30 | 165 | 520 | 690 | 400 | -- | 284 | 312 |
| 36 | 200 | 590 | 738 | 400 | -- | 368 | 442 |
| 42 | 251 | 656 | 838 | 400 | -- | 713 | 856 |
| 48 | 276 | 720 | 945 | 640 | -- | 864 | 1010 |

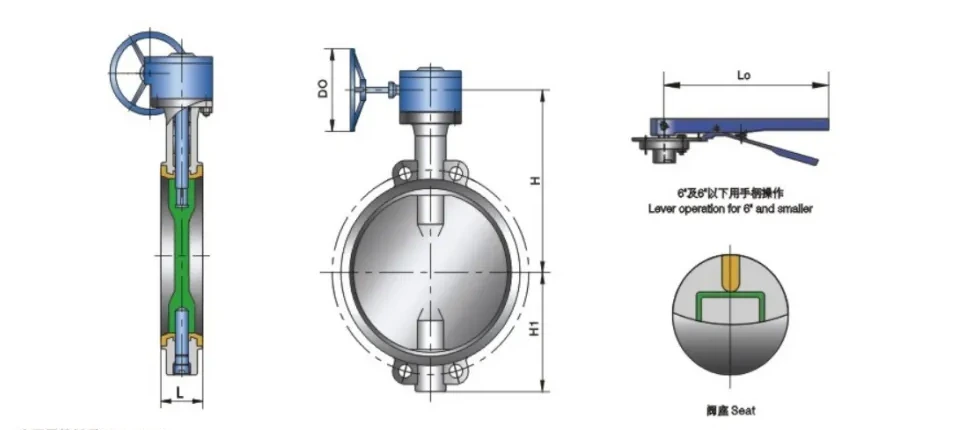

Structure & product views
Product structure and views.
Product parameters
Technical data tables.
Part materials
Class 150 · Part materials
| Part | Material |
|---|---|
| Body | ASTM A216 WCB |
| Stem | ASTM A276 410 |
| Seat | NBR |
| Thrust Washer | 304 + PTFE |
| Plate | WCB |
| O-Ring | NBR |
Dimensions & weights
Class 150 · Dimensions and weights
| Size (in) | L (mm) | H1 (mm) | H (mm) | D₀ (mm) | L₀ (mm) | Wafer weight (kg) | Lug weight (kg) |
|---|---|---|---|---|---|---|---|
| 2 | 43 | 74 | 180 | 160 | 200 | 10 | 11 |
| 2-1/2 | 46 | 79 | 196 | 160 | 200 | 10 | 12 |
| 3 | 46 | 85 | 205 | 160 | 200 | 11 | 13 |
| 4 | 52 | 101 | 215 | 160 | 200 | 12 | 15 |
| 5 | 56 | 112 | 230 | 160 | 240 | 14 | 18 |
| 6 | 56 | 125 | 245 | 240 | 240 | 16 | 19 |
| 8 | 60 | 160 | 280 | 240 | 240 | 20 | 24 |
| 10 | 68 | 192 | 315 | 240 | 280 | 28 | 34 |
| 12 | 78 | 242 | 355 | 310 | 280 | 39 | 46 |
| 14 | 78 | 277 | 410 | 310 | -- | 67 | 77 |
| 16 | 102 | 302 | 425 | 310 | -- | 89 | 108 |
| 18 | 114 | 341 | 462 | 310 | -- | 109 | 125 |
| 20 | 127 | 366 | 495 | 310 | -- | 128 | 168 |
| 24 | 154 | 424 | 586 | 310 | -- | 230 | 280 |
| 30 | 165 | 520 | 690 | 400 | -- | 284 | 312 |
| 36 | 200 | 590 | 738 | 400 | -- | 368 | 442 |
| 42 | 251 | 656 | 838 | 400 | -- | 713 | 856 |
| 48 | 276 | 720 | 945 | 640 | -- | 864 | 1010 |
Dimensions & weights
Opening torque
| Nominal size NPS (mm) | Max. differential pressure ΔP = 1.0 (MPa) | Max. differential pressure ΔP = 2.0 (MPa) |
|---|---|---|
| 50 | 14 | 26 |
| 65 | 18 | 30 |
| 80 | 26 | 48 |
| 100 | 38 | 63 |
| 125 | 86 | 132 |
| 150 | 110 | 203 |
| 200 | 210 | 395 |
| 250 | 358 | 668 |
| 300 | 529 | 1019 |
| 350 | 855 | -- |
| 400 | 1146 | -- |
| 450 | 1616 | -- |
| 500 | 2174 | -- |
| 600 | 3423 | -- |
| 700 | 5318 | -- |
| 800 | 7800 | -- |
| 900 | 12500 | -- |
| 1000 | 15000 | -- |
Dimensions & weights
Flow coefficient Cv
| Nominal diameter DN (mm) | Flow coefficient Cv |
|---|---|
| 2 | 102 |
| 2-1/2 | 102 |
| 3 | 242 |
| 4 | 423 |
| 5 | 423 |
| 6 | 1160 |
| 8 | 2016 |
| 10 | 3066 |
| 12 | 4568 |
| 14 | 6325 |
| 16 | 8152 |
| 18 | 11023 |
| 20 | 13780 |
| 24 | 20486 |
| 28 | 31586 |
| 32 | 35612 |
| 36 | 47860 |
| 40 | 71460 |
