Flanged sleeved plug valve Class 150/300/600

Name: Flanged sleeved plug valve Class 150/300/600
Brand: ZGV
SKU: 2572

FamilyPlug valve

Product ID2572

Sales supportSubmit RFQ

Back to Plug Valves ↗

Catalogue configuration

Selection and installation

Flanged sleeved plug valve Class 150/300/600. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2572.

What distinguishes this product?

Flanged sleeved plug valve Class 150/300/600. The sleeve construction and flanged dimensions distinguish this entry from lift-type and multiway plug valves. Confirm sleeve material and fluid compatibility for the selected class.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Plug valve manufacturer →

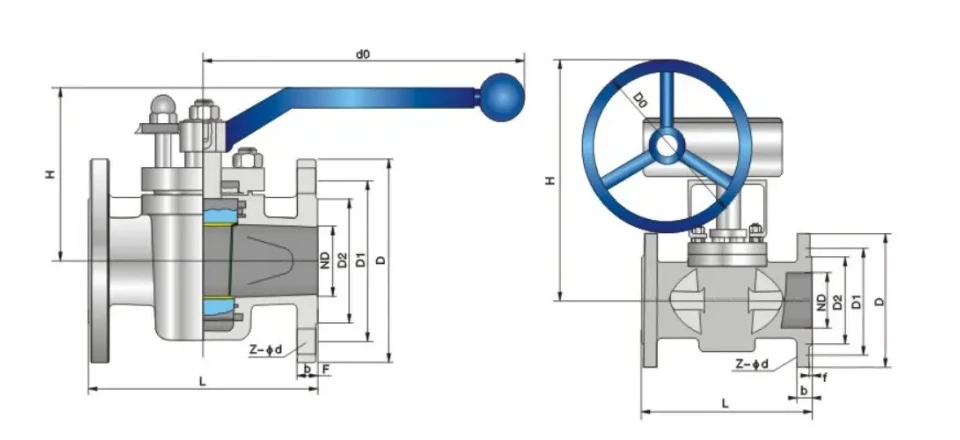

Structure and product views for Flange type sleeve plug valve

Part materials

Cutting sleeve plug valve · Main parts materials

No.	Part	Material
1	Body	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
2	Plug	ASTM A182-Gr.F6a; ASTM A182-F22; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
3	Gasket	Flexible graphite+stainless steel; PTFE
4	Cover	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
5	Bolt	ASTM A193-B7, A193-B8, A193-B8M
6	Nut	ASTM A194-2H, A194-8, A194-8M
7	Packing	Flexible graphite; PTFE
8	Gland	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
9	Wrench	ASTM A216-WCB; ASTM A351-CF8, CF8M, CF3, CF3M
10	Yoke nut	Aluminium alloy ZQA19-4
11	Handwheel	ASTM A536 Gr.60–40–18; ASTM A216-WCB

Dimensions & weights

Class 150/300/600 · Main connection dimensions

Class	Nominal size (in)	d (mm)	d1 (mm)	d2 (mm)	L (mm)	b (mm)	H (mm)	D₀ (mm)
150	1/2	13	21.8±0.11	38	108	10	110	160
150	3/4	19	27.2±0.1	43	117	13	115	160
150	1	25	33.9±0.1	49	127	13	115	190
150	1-1/4	32	42.7±0.1	56	140	13	135	190
150	1-1/2	38	48.8±0.1	65	165	13	140	240
150	2	51	64.2±0.1	78	178	16	150	305
150	2-1/2	64	74±0.5	90	190	16	165	305
150	3	78	90±0.15	105	203	16	180	450
150	4	102	115.6±0.15	126	229	19	380	500
300	1/2	13	21.8±0.1	38	140	10	110	175
300	3/4	19	27.2±0.1	43	152	13	115	175
300	1	25	33.9±0.1	49	165	13	115	175
300	1-1/4	32	42.7±0.1	56	178	13	135	220
300	1-1/2	38	48.8±0.1	65	190	13	140	280
300	2	51	61.2±0.1	78	216	16	150	305
300	2-1/2	64	74±0.2	90	241	16	165	350
300	3	78	90±0.15	105	283	16	180	450
300	4	102	115.6±0.15	126	305	19	380	300
600	1/2	13	21.5±0.1	38	165	10	110	175
600	3/4	19	27.2±0.1	46	190	13	115	175
600	1	25	33.9±0.1	52	216	13	115	220
600	1-1/4	32	42.7±0.1	60	229	13	135	280
600	1-1/2	38	48.8±0.1	70	241	13	140	305
600	2	51	61.2±0.1	82	292	16	150	350
600	2-1/2	64	74±0.2	98	330	16	165	450
600	3	76	90±0.15	115	356	16	180	500
600	4	102	115.6±0.15	136	432	19	380	--
