Dimensions & weights
Standard and regulation
| Design and manufacture | Face to face / End to end | Pressure-temperature rating | Inspection and test |
|---|---|---|---|
| API 600; ANSI B16.34; E101 | ANSI B16.10; E101 | ANSI B16.34; E101 | API 598; E101 |
Gate valve / Product 2575
Gate valve of pound-grade high-temperature/high-pressure power station · Class 1500~3500
FamilyGate valve
Product ID2575
Sales supportSubmit RFQ
Catalogue configuration
Selection and installation
Gate valve of pound-grade high-temperature/high-pressure power station · Class 1500~3500. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2575.
What distinguishes this product?
Gate valve of pound-grade high-temperature/high-pressure power station · Class 1500~3500. Compare the gate construction, stem arrangement, end connection and the catalogue designation. Send the operating conditions and required materials before confirming a gate-valve configuration.
What information is needed for a quotation?
ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.
Confirm pressure-temperature limits and the final configuration with ZGV.

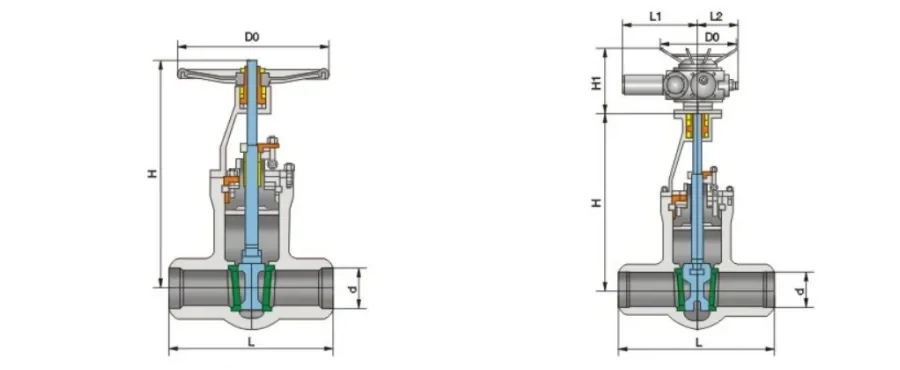

Structure & product views
Product structure and views.
Product parameters
Technical data tables.
Part materials
Performance regulation
| Body material | 1500 Class shell test | 1500 Class seal test | 2000 Class shell test | 2000 Class seal test | 2500 Class shell test | 2500 Class seal test | 3500 Class shell test | 3500 Class seal test | Working temperature (°C) | 1500 Class working pressure (MPa) | 2000 Class working pressure (MPa) | 2500 Class working pressure (MPa) | 3500 Class working pressure (MPa) | Suitable medium |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM A216 WCB | 39.0 | 28.6 | 52.1 | 38.2 | 65.1 | 47.7 | 91.1 | 66.8 | 38 / 427 | 26.0 / 14.5 | 34.7 / 19.3 | 43.4 / 24.1 | 60.7 / 33.7 | Water, steam |
| ASTM A217 WC1 | 36.6 | 26.8 | 48.8 | 35.8 | 61.1 | 44.8 | 85.5 | 62.7 | 38 / 454 | 24.4 / 17.1 | 32.5 / 22.8 | 40.7 / 28.5 | 57.0 / 40.0 | Water, steam |
| ASTM A217 WC6 | 39.6 | 29.0 | 52.8 | 38.7 | 65.9 | 48.3 | 92.3 | 67.7 | 38 / 552 | 26.4 / 6.3 | 35.2 / 8.45 | 43.9 / 10.6 | 61.5 / 14.4 | Water, steam |
| ASTM A217 WC9 | 39.6 | 29.0 | 52.8 | 38.7 | 65.9 | 48.3 | 92.3 | 67.7 | 38 / 593 | 26.4 / 4.0 | 35.2 / 5.3 | 43.9 / 6.6 | 61.5 / 9.3 | Water, steam |
Part materials
Main parts material
| Part name | Body | Cover | Yoke | Wedge disc | Stem | Seat ring | Sealing shim | Packing | Yoke nut |
|---|---|---|---|---|---|---|---|---|---|
| Material | WCB | 35 | WCB | WCB | 2Cr13 | 25 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | WC1 | 12Cr1MoV | WCB | WC1 | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | WC6 | 12Cr1MoV | WCB | WC6 | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | WC9 | 12Cr1MoV | WCB | WC9 | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | ZGCr5Mo | 35Cr1Mo | WCB | ZGCr5Mo | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
Dimensions & weights
Main outline size and connection size
| Actuator code | Size (in) | Electric actuator code | d (mm) | L (mm) | H (mm) | H1 (mm) | D₀ (mm) | L1 (mm) | L2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| Z60Y-1500lb | 2-1/2 | -- | 56 | 254 | 671 | -- | 200 | -- | -- | 48 |
| Z60Y-1500lb | 3 | -- | 64 | 305 | 692 | -- | 200 | -- | -- | 58 |
| Z60Y-1500lb | 4 | -- | 84 | 406 | 790 | -- | 230 | -- | -- | 98 |
| Z60Y-1500lb | 5 | -- | 100 | 483 | 875 | -- | 260 | -- | -- | 126 |
| Z60Y-1500lb | 6 | -- | 126 | 559 | 1055 | -- | 360 | -- | -- | 212 |
| Z60Y-1500lb | 8 | -- | 158 | 711 | 1148 | -- | 410 | -- | -- | 377 |
| Z60Y-2000lb | 2-1/2 | -- | 52 | 330 | 640 | -- | 200 | -- | -- | 50 |
| Z60Y-2000lb | 3 | -- | 60 | 368 | 680 | -- | 230 | -- | -- | 82 |
| Z60Y-2000lb | 4 | -- | 80 | 457 | 806 | -- | 260 | -- | -- | 134 |
| Z60Y-2000lb | 5 | -- | 96 | 533 | 984 | -- | 360 | -- | -- | 174 |
| Z60Y-2000lb | 6 | -- | 118 | 610 | 1090 | -- | 410 | -- | -- | 338 |
| Z60Y-2500lb | 2-1/2 | -- | 46 | 330 | 639 | -- | 200 | -- | -- | 70 |
| Z60Y-2500lb | 3 | -- | 54 | 368 | 680 | -- | 230 | -- | -- | 90 |
| Z60Y-2500lb | 4 | -- | 70 | 457 | 805 | -- | 260 | -- | -- | 142 |
| Z60Y-2500lb | 5 | -- | 86 | 533 | 965 | -- | 360 | -- | -- | 191 |
| Z60Y-2500lb | 6 | -- | 104 | 610 | 1070 | -- | 410 | -- | -- | 339 |
| Z60Y-3500lb | 3 | -- | 44 | 440 | 745 | -- | 260 | -- | -- | 196 |
| Z60Y-3500lb | 4 | -- | 56 | 540 | 860 | -- | 300 | -- | -- | 283 |
| Z860Y-1500lb | 2-1/2 | SMC-04 | 56 | 254 | 520 | 262 | 200 | 140 | 243 | 93 |
| Z860Y-1500lb | 3 | SMC-04 | 64 | 305 | 523 | 262 | 200 | 140 | 243 | 110 |
| Z860Y-1500lb | 4 | SMC-03 | 84 | 406 | 599 | 319 | 508 | 198 | 281 | 168 |
| Z860Y-1500lb | 4 | SMC-00 | 84 | 406 | 599 | 320 | 305 | 400 | 555 | 208 |
| Z860Y-1500lb | 5 | SMC-03 | 100 | 483 | 678 | 319 | 305 | 400 | 555 | 189 |
| Z860Y-1500lb | 5 | SMC-00 | 100 | 483 | 678 | 320 | 305 | 400 | 555 | 232 |
| Z860Y-1500lb | 6 | SMC-0 | 126 | 559 | 793 | 389 | 305 | 410 | 565 | 358 |
| Z860Y-1500lb | 6 | SMC-1 | 126 | 559 | 793 | 402 | 305 | 420 | 665 | 444 |
| Z860Y-1500lb | 8 | SMC-0 | 158 | 711 | 813 | 389 | 305 | 410 | 565 | 517 |
| Z860Y-1500lb | 8 | SMC-1 | 158 | 711 | 813 | 414 | 305 | 420 | 665 | 561 |
| Z860Y-1500lb | 10 | SMC-2 | 200 | 864 | 998 | 490 | 457 | 440 | 688 | 852 |
| Z860Y-1500lb | 10 | SMC-1 | 200 | 864 | 998 | 464 | 305 | 420 | 655 | 823 |
| Z860Y-1500lb | 12 | SMC-1 | 250 | 991 | 1141 | 515 | 305 | 420 | 655 | 1122 |
| Z860Y-1500lb | 12 | SMC-2 | 250 | 991 | 1156 | 560 | 457 | 440 | 688 | 1150 |
| Z860Y-1500lb | 14 | SMC-3 | 280 | 1067 | 1248 | 656 | 610 | 690 | -- | 1765 |
| Z860Y-1500lb | 16 | SMC-3 | 318 | 1194 | 1351 | 697 | 610 | 690 | -- | 2429 |
| Z860Y-1500lb | 18 | SMC-3 | 360 | 1346 | 1535 | 710 | 610 | 690 | -- | 2454 |
| Z860Y-1500lb | 18 | SMC-4 | 360 | 1346 | 1540 | 760 | 610 | 715 | -- | 2524 |
| Z860Y-1500lb | 20 | SMC-3 | 406 | 1473 | 1726 | 820 | 610 | 690 | -- | 3334 |
| Z860Y-1500lb | 20 | SMC-4 | 406 | 1473 | 1731 | 890 | 610 | 715 | -- | 3380 |
| Z860Y-1500lb | 22 | SMC-3 | 450 | 1600 | 1921 | 854 | 610 | 690 | -- | 4409 |
| Z860Y-1500lb | 22 | SMC-4 | 450 | 1600 | 1926 | 945 | 610 | 715 | -- | 4648 |
| Z960Y-2000lb | 2-1/2 | SMC-04 | 50 | 330 | 540 | 262 | 200 | 140 | 243 | 202 |
| Z960Y-2000lb | 3 | SMC-03 | 60 | 368 | 558 | 294 | 508 | 198 | 332 | 140 |
| Z960Y-2000lb | 4 | SMC-00 | 80 | 457 | 654 | 320 | 305 | 400 | 555 | 245 |
| Z960Y-2000lb | 5 | SMC-00 | 96 | 533 | 780 | 340 | 305 | 400 | 555 | 280 |
| Z960Y-2000lb | 5 | SMC-0 | 96 | 533 | 780 | 389 | 305 | 410 | 565 | 323 |
| Z960Y-2000lb | 6 | SMC-0 | 118 | 610 | 830 | 389 | 305 | 410 | 565 | 419 |
| Z960Y-2000lb | 8 | SMC-1 | 148 | 762 | 960 | 418 | 305 | 420 | 655 | 626 |
