Ball valve / Product 2523

Three-piece forged steel ball valve Class 800/1500

Name: Three-piece forged steel ball valve Class 800/1500
Brand: ZGV
SKU: 2523

FamilyBall valve

Product ID2523

Sales supportSubmit RFQ

Back to Ball Valves ↗

Catalogue configuration

Selection and installation

Three-piece forged steel ball valve Class 800/1500. Compare separate Class 800/1500 bore dimensions, material options and socket-weld details. Send your requirements for a ZGV quote.

What distinguishes this product?

Three-piece forged steel ball valve Class 800/1500. Match the pressure-class row as well as the NPS when reading the full- and reduced-bore tables: Class 800 and Class 1500 dimensions differ. Use the separate socket-weld table for the connection reference. Blank catalogue cells require confirmation; submit the class, bore, connection and operating conditions with your RFQ.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Ball valve manufacturer →

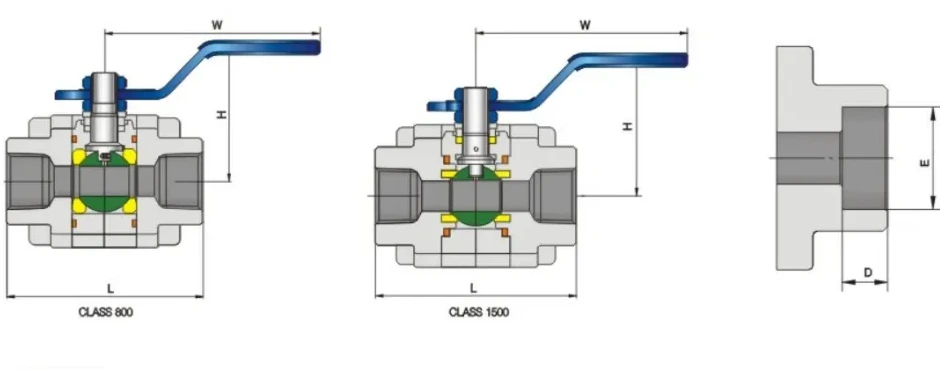

Structure and product views for Three piece forged steel ball valve Class800/1500

Dimensions & weights

Class 800/1500 · Full bore

Class	Size (in)	End-to-end L (mm)	Lever width W (mm)	Center of top H (mm)	Inside bore D (mm)	Weight (kg)
800	1/4	67	120	50	11	0.75
800	3/8	67	120	50	11	0.75
800	1/2	73	120	52	14	0.95
800	3/4	88	145	60	20.5	1.7
800	1	105	145	65	25	2.4
800	1-1/4	116	175	86	31.6	3.7
800	1-1/2	128	175	93	38	4.9
800	2	146	260	110	49	8.7
1500	1/4	73	120	52	11	--
1500	3/8	73	120	52	11	1.2
1500	1/2	88	145	60	14	2.2
1500	3/4	105	145	60	20.5	3.4
1500	1	116	175	86	25	4.7
1500	1-1/4	128	175	93	31.6	6.7
1500	1-1/2	146	260	110	38	10.5
1500	2	--	--	--	--	--

Dimensions & weights

Class 800/1500 · Reduced bore

Class	Size (in)	End-to-end L (mm)	Lever width W (mm)	Center of top H (mm)	Inside bore D (mm)	Weight (kg)
800	1/2	67	120	50	11	0.75
800	3/4	73	120	52	14	0.95
800	1	88	145	60	20.5	1.7
800	1-1/4	105	145	65	25	2.4
800	1-1/2	116	175	86	31.6	3.7
800	2	128	175	93	38	4.9
1500	1/2	73	120	52	11	1.2
1500	3/4	88	145	60	14	2.2
1500	1	105	145	60	20.5	3.4
1500	1-1/4	116	175	86	25	4.7
1500	1-1/2	128	175	93	31.6	6.7
1500	2	146	260	110	38	10.5

Dimensions & weights

Socket-weld dimensions

Size (in)	E (mm)	D (mm)
1/4	14.1	9.6
3/8	17.6	9.6
1/2	21.9	9.6
3/4	27.4	12.7
1	34.2	12.7
1-1/4	42.7	12.7
1-1/2	48.8	12.7
2	61.1	15.9

Part materials

Major part materials

No.	Part	A105	LF2	F304	F316	F51
1	Bonnet	A105	LF2	F304	F316	F51
2	Seat	RPTFE & PEEK	RPTFE & PEEK	RPTFE & PEEK	RPTFE & PEEK	RPTFE & PEEK
3	Ball	F6	F304	F304(L)	F316(L)	F51
4	Body	A105	LF2	F304(L)	F316(L)	F51
5	O-ring	VITON	VITON	VITON	VITON	VITON
6	Stud	PTFE	B8	B8	B8M	B8M
7	Gasket	PTFE	PTFE	PTFE	PTFE	PTFE
8	Packing bushing	410	PTFE	PTFE	PTFE	PTFE
9	Gland	410	304	304(L)	316(L)	F51
10	Stem	Al	304	304(L)	316(L)	F51
11	Nameplate	1045+Zn	Al	Al	Al	Al
12	Lever	2H	1045+Zn	1045+Zn	1045+Zn	1045+Zn
13	Nut	Al	8M	8M	8M	8M
14	Elastic washer	65Mn	65Mn	304	304	304
15	Anti-static spring	304	304	304	316L	316L
