Forged-steel flanged globe valve · Class 150/300/600

Name: Forged-steel flanged globe valve · Class 150/300/600
Brand: ZGV
SKU: 2547

FamilyGlobe valve

Product ID2547

Sales supportSubmit RFQ

Back to Globe Valves ↗

Catalogue configuration

Selection and installation

Forged-steel flanged globe valve · Class 150/300/600. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2547.

What distinguishes this product?

Forged-steel flanged globe valve · Class 150/300/600. Identify the body pattern, connection and stem-sealing arrangement. State whether the duty is isolation or throttling, and provide the flow and pressure conditions for configuration review.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Globe valve manufacturer →

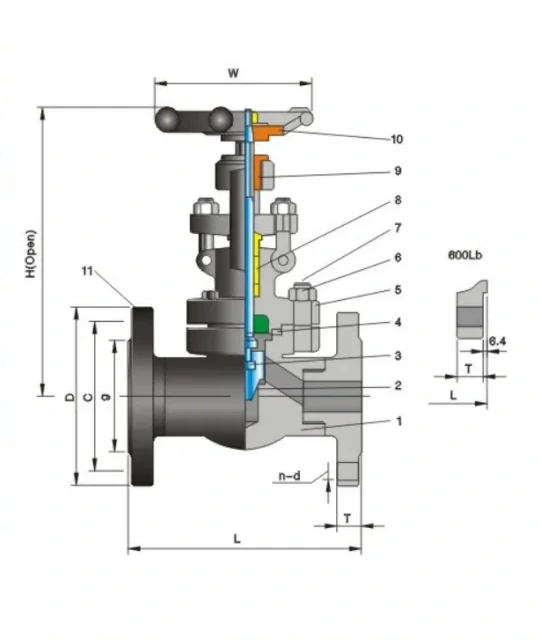

Structure and product views for Forged steel flange globe valve Class150/300/600

Dimensions & weights

Class 150/300/600 · Main dimensions and weights

Size (in)	DN (mm)	Class	L (mm)	D (mm)	C (mm)	g (mm)	T (mm)	n-d	H reduced (mm)	H full (mm)	W reduced (mm)	W full (mm)	Weight reduced (kg)	Weight full (kg)
1/2	15	150	108	90	60.5	35	11.5	4-16	158	163	100	100	4.5	6.9
1/2	15	300	162	95	66.5	35	14.5	4-16	158	163	100	100	4.8	7.7
1/2	15	600	165	95	66.5	35	14.5	4-16	158	163	100	100	5.6	7.8
3/4	20	150	117	100	70	43	13	4-16	163	193	100	125	6.9	9.8
3/4	20	300	178	115	82.5	43	16	4-19	163	193	100	125	7.7	11.3
3/4	20	600	190	115	82.5	43	16	4-19	163	193	100	125	7.8	12.5
1	25	150	127	110	79.5	51	14.5	4-16	193	250	125	160	9.8	13.5
1	25	300	203	125	89	51	18	4-19	193	250	125	160	11	16.8
1	25	600	216	125	89	51	18	4-19	193	250	125	160	12.5	17.5
1-1/4	32	150	140	115	89	63	16	4-16	250	250	160	160	13.5	19.5
1-1/4	32	300	216	135	98.5	63	19.5	4-19	250	250	160	160	16.8	21.2
1-1/4	32	600	229	135	98.5	63	21	4-19	250	250	160	160	17	23.5
1-1/2	40	150	165	125	98.5	73	18	4-16	250	291	160	180	19.5	28.5
1-1/2	40	300	229	155	114.5	73	21	4-22.5	250	291	160	180	21.2	32.6
1-1/2	40	600	241	155	114.5	73	22.5	4-22.5	250	291	160	180	23.5	38.5
2	50	150	203	150	120.5	92	19.5	4-19	291	312	180	200	28	30.3
2	50	300	267	165	127	92	22.5	8-19	291	312	180	200	32.6	35
2	50	600	292	165	127	92	26	8-19	291	312	180	200	38.8	42.2

Part materials

Major part materials

No.	Part	Material
1	Body	A105
2	Disc	13Cr
3	Stem	A182-F6a
4	Gasket	Stainless steel+flexible graphite
5	Bonnet	A105
6	Nut	A194-2H
7	Bolt	A193-B7
8	Packing	Flexible graphite
9	Stem nut	13Cr
10	Handwheel	Malleable iron
11	Flange	A105
