Bolted-bonnet plug-type disc globe valve Class 600

Name: Bolted-bonnet plug-type disc globe valve Class 600
Brand: ZGV
SKU: 2543

FamilyGlobe valve

Product ID2543

Sales supportSubmit RFQ

Back to Gate Valves ↗

Catalogue configuration

Selection and installation

Bolted-bonnet plug-type disc globe valve Class 600. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2543.

What distinguishes this product?

Bolted-bonnet plug-type disc globe valve Class 600. Identify the body pattern, connection and stem-sealing arrangement. State whether the duty is isolation or throttling, and provide the flow and pressure conditions for configuration review.

What information is needed for a quotation?

ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.

Confirm pressure-temperature limits and the final configuration with ZGV.

Globe valve manufacturer →

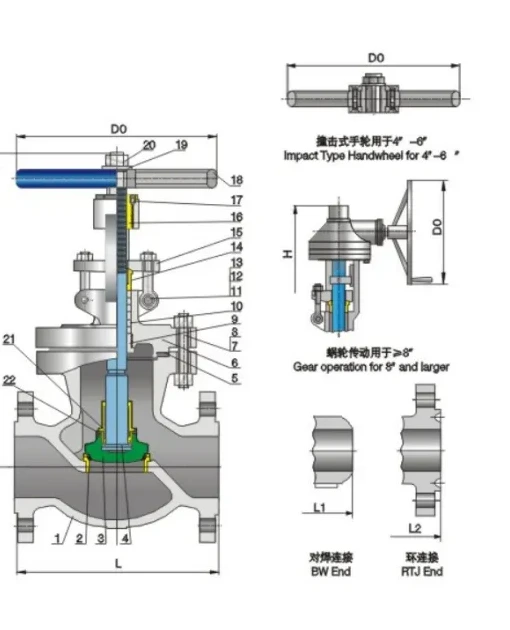

Structure and product views for Bolted valve cover with exposed stem Class600

Dimensions & weights

Class 600 · Dimensions and weights

Class	NPS	DN (mm)	L-L₁ RF/BW (in)	L-L₁ RF/BW (mm)	L₂ RTJ (in)	L₂ RTJ (mm)	H open (in)	H open (mm)	D₀ (in)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
Class600	2	50	11.5	292	11.62	295	16.75	425	9.88	250	39	33
Class600	2-1/2	65	13	330	13.12	333	19.75	502	11.81	300	58	48
Class600	3	80	14	356	14.12	359	20.5	521	13.75	350	73	61
Class600	4	100	17	432	17.12	435	24.38	620	17.75	450	120	95
Class600	6	150	22	559	22.12	562	34.88	886	28.38	720	327	261
Class600	8	200	26	660	26.12	663	36.69	932	18.13	460	482	385
Class600	10	250	31	787	31.12	790	41	1040	24	610	700	588
Class600	12	300	33	838	33.12	841	50.38	1280	30	760	900	795
Class600	14	350	35	889	35.12	892	70.88	1800	30	760	2700	2510
Class600	16	400	39	991	39.12	994	76	1930	30	760	3600	3350

Part materials

Major part materials

No.	Part	Material
1	Body	ASTM A216 Gr.WCB
2	Seat ring	ASTM A105+13Cr
3	Disc	ASTM A105+13Cr
4	Stem	ASTM A182 F6a
5	Gasket	304 S.S. Jacketed Graphite
6	Bonnet	ASTM A216 Gr.WCB
7	Stud	ASTM A193 Gr.B7
8	Nut	ASTM A194 Gr.2H
9	Backseat	ASTM A276 410
10	Packing	Graphite
11	Gland bolt	ASTM A193 Gr.B7
12	Gland nut	ASTM A194 Gr.2H
13	Pin	C.S.
14	Bushing	ASTM A276 410
15	Gland	ASTM A216 Gr.WCB
16	Stem nut	Aluminum Bronze
17	Screw	C.S.
18	Handwheel	Malleable Iron
19	Washer	C.S.
20	Nut	C.S.
21	Disc cover	ASTM A276 410
22	Washer	S.S.
