Globe valve / Product 2552
Catalogue configuration
Angle globe valve. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2552.
Angle globe valve. Identify the body pattern, connection and stem-sealing arrangement. State whether the duty is isolation or throttling, and provide the flow and pressure conditions for configuration review.
ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.
Confirm pressure-temperature limits and the final configuration with ZGV.

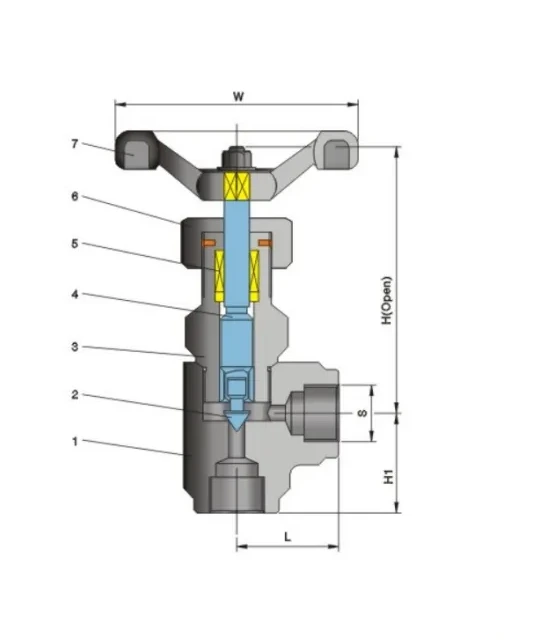

Structure & product views
Product parameters
Dimensions & weights
| NPS | DN (mm) | L (mm) | S/NPT | H₁ (mm) | H open (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1/4 | 6 | 30 | 6 | 30 | 82 | 65 | 0.65 |
| 3/8 | 10 | 30 | 10 | 32 | 82 | 65 | 0.59 |
| 1/2 | 15 | 30 | 15 | 35 | 82 | 65 | 0.54 |
| 3/4 | 20 | 40 | 20 | 40 | 94 | 80 | 1.2 |
| 1 | 25 | 40 | 25 | 45 | 94 | 80 | 1.1 |
Part materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | A105 |
| 2 | Disc | 13Cr |
| 3 | Bonnet | A105 |
| 4 | Stem | A182-F6a |
| 5 | Packing | Flexible graphite |
| 6 | Impact nut | 13Cr |
| 7 | Handwheel | Malleable Iron |
