Plug valve / Product 2571
Catalogue configuration
Socket-welding cutting sleeve plug valve. Manufacturer quotation from ZGV. Share quantity and operating conditions. Product 2571.
Socket-welding cutting sleeve plug valve. Distinguish lubricated, sleeved, lift-type and multiway constructions. Specify the seat or sleeve material, connection and required flow path; confirm the final configuration with the selected product reference.
ZGV is an industrial valve manufacturer for B2B project enquiries. Send the product ID, quantity, fluid, size, operating and design pressure and temperature, body and seat materials, connection and actuation. Include project standards and inspection documents for confirmation.
Confirm pressure-temperature limits and the final configuration with ZGV.

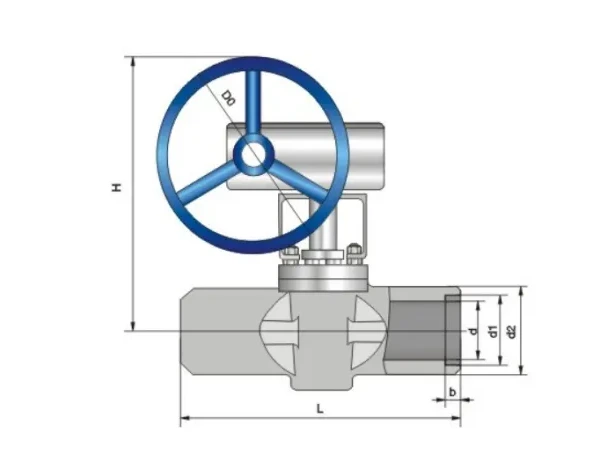

Structure & product views
Product parameters
Dimensions & weights
| Item | Standard or requirement |
|---|---|
| Structural formation | BB–BC–OS&Y |
| Driving manner | Handwheel, bevel gear wrench |
| Design standard | API 599; API 6D |
| Face to face | ASME B16.10 |
| Flange end | ASME B16.5 |
| Test & inspection | API 598; API 6D |
Dimensions & weights
| Nominal pressure (lb) | Shell test (MPa) | Sealing test (MPa) | Suitable temperature (°C) | Suitable medium |
|---|---|---|---|---|
| 150 | 3.0 | 2.2 | ≤550°C | Water, steam |
| 300 | 7.5 | 5.5 | ≤550°C | Water, steam |
| 600 | 15.0 | 11.0 | ≤550°C | Water, steam |
| 900 | 22.5 | 16.5 | ≤550°C | Water, steam |
| 1500 | 37.5 | 27.5 | ≤550°C | Water, steam |
Part materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M |
| 2 | Plug | ASTM A182-Gr.F6a; ASTM A182-F22; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M |
| 3 | Gasket | Flexible graphite+stainless steel; PTFE |
| 4 | Cover | ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M |
| 5 | Bolt | ASTM A193-B7, A193-B8, A193-B8M |
| 6 | Nut | ASTM A194-2H, A194-8, A194-8M |
| 7 | Packing | Flexible graphite; PTFE |
| 8 | Gland | ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M |
| 9 | Wrench | ASTM A216-WCB; ASTM A351-CF8, CF8M, CF3, CF3M |
| 10 | Yoke nut | Aluminium alloy ZQA19-4 |
| 11 | Handwheel | ASTM A536 Gr.60–40–18; ASTM A216-WCB |
